GCPSG-017 (2024): Special Discussion Area Construction Guide

Purpose

The purpose of this guide is to provide Government of Canada (GC) employees with information on the requirements for establishing a Special Discussion Area (SDA). Employees should also consult their departmental security policies, directives, standards, processes, and guides for additional information and direction.

Applicability

This guide identifies physical security requirements for establishing special discussion - speech secure areas but may not fully address the IM/IT security (cybersecurity) for GC systems used in the creation, processing, or storage of electronic information.

Information Technology Considerations

With the constantly evolving threat landscape, and the convergence of physical and information technology (IT) security, the requirement to assess the risk of any application and/or software connected to a network to operate and support equipment in Government of Canada controlled buildings is critical. Some examples of these control systems could be for items such as, but not limited to, security lighting, perimeter gates, doors, HVAC, etc.

Before implementing any applications and/or software that will control and/or automate certain building functions, your departmental security requires the completion of a Security Assessment and Authorization (SA&A). This will ensure that the integrity and availability of the components the applications and/or software controls are maintained and that any risks highlighted will be mitigated. Starting the SA&A process early is highly recommended to ensure project delivery schedules are not affected. For more information on the SA&A process, please consult your departmental Security.

Existing Space

The use of existing locations "as is" that may be adapted to meet the client's entire security and accommodation requirements with existing locations within the facility that have been tested and certified to meet a client's SPC security requirements

Partial Retrofits

Partial retrofits would imply a limited number of spaces within larger existing facility which require renovations to meet speech security requirements. This may include rebuilding or enhancing specific room walls or partitions, adding vestibules, modifying duct work, replacing doors or as required to meet the specified SPC requirements. These situations may introduce various challenges to properly implement into existing base building design and layouts.

New Construction or Full Retrofits

The main concentration and content of this guide is based on the provision of larger scale new constructions or full retrofit projects requiring multiple speech secure rooms within a larger open plan office area and/or between adjacent rooms and spaces. These scenarios allow the opportunity to implement and integrate speech security requirements as efficiently and effectively as possible into the National Project Management System (NPMS) model for accommodation plans.

Speech Security Cost and Schedule Forecasts

Initial accurate forecasting of speech security requirements is critical as costs and timelines can be significantly more than those required for the provision of "standard" closed office space and these should be well accounted for and justified from the start. While these details and forecast will need to be further refined in later project stages it would be prudent not to underestimate the possible implications.

Using the layout concept or an established layout plan, the secure closed offices and other rooms need to be located and identified on the plan as best as possible. The corresponding established SPC security protection levels need to be determined and assigned to those rooms, at a minimal this would require knowing the number, type and approximate size of rooms and security protection level required. However, having a relatively accurate layout plan would also allow for preliminary mechanical systems routing to also be conceptualized in order to aid in estimating these implications. It may be desirable that identifying speech secure locations and assigning the appropriate SPC criteria be done in cooperation with security officials conducting TRA and/or other assessments.

In order to try and accurately forecast costs and timelines associated with the provision of speech security consideration needs to be given to, base building design details; services routing; "non- standard" and enhanced interior design specifications; special materials/features quantities and availability (for example, high STC doors); labour skills and scheduling; security compliance testing. Well- coordinated plans, lines of communication and schedules will need to be developed between the SST and the various disciplines of consultants, contractors and trade subcontractors in order for implementation to be completed effectively and efficiently.

Section Definitions

Intelligibility of speech

Speech is said to be intelligible when more than 50% of a panel of attentive listeners with unimpaired hearing can correctly repeat back at least one word of short test sentences.

Audibility of speech

Speech is said to be audible when more than 50% of a panel of attentive listeners with unimpaired hearing can just hear some speech sounds although they may not understand any of the words.

Speech Privacy

Conditions in which it is difficult to understand speech from a nearby room. Speech may be occasionally intelligible although speech sounds will be frequently audible.

Speech Security

A high level of speech privacy where speech sounds from a nearby room would be no more than very rarely intelligible and only occasionally audible.

High Speech Security

A very high level of speech privacy where speech sounds from a nearby room would be essentially unintelligible and only very rarely audible.

SPC

A quantity combining a measure of the attenuation of speech sounds transmitted from a closed room and the level of ambient noise at points outside the room. SPC values are directly related to the audibility and intelligibility of speech, transmitted from a nearby closed room, and are technically defined in the ASTM E2638 measurement standard and reference.

Closed room

A room where the walls, with included doors and windows, along with the floor and ceiling, form a completely closed space, providing sound isolation between the room and all adjacent spaces.

Normal overhearing

The action of an eavesdropper (with good hearing) outside a closed room, listening attentively at locations possibly close to, but not touching, the outside of the room, and not using electronic devices to aid in hearing speech sounds transmitted from the closed room.

Ambient noise

General sounds in the indoor environment such as ventilation noise, the sounds of office equipment, or more distant conversations that can mask or make it more difficult to hear or understand particular speech sounds.

Frequently audible

Audible approximately once every 2 minutes.

Occasionally intelligible/audible

Intelligible or audible approximately 4 times in a 1 hour period.

Very rarely intelligible/audible

Intelligible or audible approximately 4 times during an 8 hour period.

Essentially unintelligible

Intelligible approximately once in a period of two working days (that is, 16 hours).

Speech Privacy and Speech Security Criteria

Exceptional speech security requirements

In some exceptional cases, the information being discussed may be rated higher than Top Secret. This might lead to the requirement for an even higher level of speech security corresponding to an SPC of 90 which would provide conditions for which speech would be unintelligible and essentially always inaudible to an eavesdropper outside the room. This may require a Threat Risk Assessment (TRA) to justify the need for this higher security and very specialized help to ensure that the design meets such exceptional requirements. SPC 90 would be costly and difficult to achieve in most situations.

Testing for Compliance with Criteria

All new and newly renovated rooms for sensitive discussions should be tested by an independent third-party acoustical specialist for compliance with the required SPC rating following the procedures described in ASTM E2638 [1,2]. Measurements should include more likely locations of potential eavesdroppers and more likely locations of weak points in the sound isolation of the room such as near doors. Testing should be repeated after any renovations to the room that may affect the integrity of the room boundaries, as well as after changes to correct previously identified deficiencies. In addition, testing should be repeated periodically to confirm the continuing compliance with the required criteria in spite of wear to door seals and other possible degradation due to wear over time. Re-testing would be particularly important for rooms intended to provide protection to the High Speech Security level. Rooms that have not been tested to demonstrate their compliance with a particular SPC criterion should not be used for discussion of sensitive information.

Consideration of Adjacent Spaces

Control of adjacent spaces is always desirable and a system of hierarchical zones can ensure that adjacent spaces are restricted to acceptable personnel. Rooms intended to provide protection to the Speech Security and High Speech Security levels should not be adjacent to an uncontrolled space.

Control of access to adjacent spaces is not needed to prevent normal overhearing of speech from the room, but is helpful to mitigate more determined types of eavesdropping involving touching the walls of the room or using electronic devices. Protection against such more determined forms of eavesdropping is beyond the scope of this section but would usually require control of adjacent spaces.

In some situations, an unoccupied adjacent space can be used as a buffer zone to enhance the speech security of the room. For example, a 'room-within-a-room' type construction can be used to achieve very high levels of speech security. In these situations, SPC ratings could be measured between the room and spaces outside of the immediately adjacent buffer zone. In other cases, where the adjacent space is occupied or where people pass through the adjacent spaces, it should not normally be counted as a buffer zone when measuring the SPC rating of the room. Where there can be people in the space, it can only be included as a secure buffer zone if all people in the adjacent space have a legitimate need to know the material to be discussed in the room.

Designing to Achieve these Criteria

There are many details that will influence the acoustical privacy of a meeting room [4]. To ensure that 'as-built' constructions meet the desired performance goals, it is good practice to design for an SPC value of up to 5 points higher than the criterion design goal for each category because the real construction will often not perform as well as intended. It is also important that there is careful monitoring of the construction process to provide appropriate quality assurance. Having an adequate wall is only one part of the problem. Doors into a closed room usually limit the sound isolation and a carefully designed vestibule is often needed. There are also many other sound paths that allow sound to be transmitted from the meeting room to adjacent spaces other than directly through the common wall. These would include: thin concrete floor slabs, connecting ducts, pipes and conduit penetrating the room boundaries. Without proper consideration of all of these flanking paths, it will not be possible to achieve the requirements for higher levels of security.

It is recommended and is usually cost effective to use an acoustical consultant with expertise in designing rooms for acceptable speech security when constructing closed rooms for all levels of sensitive discussions. This is essential for exceptional cases above the High Speech Security category, where each room needs to be specially designed to meet all local requirements, as well as the specified minimum SPC value.

Design of Different Kinds of High SPC Rooms

The design of high SPC rooms, or suites or even entire buildings will be most successful if a system's design approach is used. The system comprises all the elements which make up the area to be controlled in terms of SPC. This includes all of the building systems, such as HVAC, plumbing, fire protection, electrical services, communications and connectivity, security and signaling systems, building envelope, structure, and of course the architectural design. A plan of the area needs to first be evolved by consideration of the space available, the space required and the adjacencies between the various areas of the building. A successful product in terms of high speech privacy rating (ie. high SPC rating) has to consider all of the elements involved, including not only the constructed space but also the access to the spaces surrounding the protected space. It is only if all of the elements of the system are given due consideration that a high SPC result can be achieved. Since any single element in the system can cause a failure in speech privacy, it is paramount to always consider the overall area being protected as a system and to consider the interactions of each element and how they affect the overall performance. It is of no use to have 90% of the elements functioning perfectly and have a failure in SPC due to just 10% of the elements performing inadequately in terms of sound isolation.

Once the adjacencies and space planning have been considered, the detailed architectural design can commence. The easiest part of any design of a highly sound isolated space is the selection of a wall or floor section from a catalogue or listing of such assemblies. However, this alone usually does not ensure high performance, as it is all of the other elements that can reduce the final performance. All of the parties involved need to participate in the design and construction phases with the understanding that no single element of the system can be left unconsidered. This means that the client who will occupy or use the space, the designers, project managers, the builders and property owners need to work together to allocate sufficient resources to ensure the success of the project. For example, the HVAC design cannot be done independently of the architectural design, as ducts need to be run in such a way that the holes and cavities inside the ducts do not compromise the sound isolation, and so that there is room in the architectural plan to run ducts with the required routing to attenuate sound. A guaranteed failure is to have the architect evolve a floor plan and then to have the mechanical engineer run all of the ductwork straight through from one room to another because there is insufficient room in the circulation or other spaces to run the ductwork. Irrespective of how well the walls have been designed or constructed, the sound will enter into the ducts and travel from room to room, bypassing the wall. This is an example of a system failure, where weakness in one single element in terms of sound transmission causes a poor result in terms of SPC.

Speech Privacy Perimeter Concept

When considering an area or room to be protected in terms of speech privacy, it is useful to think of a secure perimeter around the area to be protected along with the room or group of rooms being protected. The room or rooms being protected as part of a suite are considered as the protected floor area from where speech to be protected originates, while the perimeter is a line outside the protected area totally surrounding the protected area. This concept is useful as it defines the area where sound sources are to be placed for testing SPC and also defines the perimeter outside the area where measuring points are to be located to verify performance. This concept also has the benefit of indicating where access is to be controlled in order to reduce potential eavesdropping. While the protected area in question can be a single room with the perimeter being that line surrounding the room, it can also be much more complex, which is where the concept is the most useful.

The simplest example is a single meeting room or office to be protected with an adjacent communicating office or vestibule. The protected area is simply the meeting room or office, and does not include the adjacent office or vestibule, as these areas have controlled access. The Speech Privacy Perimeter is the line in plain view surrounding the total area formed by the protected area plus the adjacent office or vestibule. A more complex example is a meeting room with an associated equipment room and translation room. The sound to be protected can be heard in any of these rooms, as loudspeakers may be being used to monitor speech occurring in the meeting room, or interpreters may be repeating in a different language the same protected content from a room adjacent to the meeting room. In this case the area to be protected includes not just the meeting room, but two other rooms as well. This suite of rooms may also incorporate other rooms with protected access or with access only from inside the suite, or sound locks/vestibules. Speech does not occur in these ancillary areas and as the areas have controlled access, and there are no listeners there that have not been granted access, the SPC does not need to be controlled there. One then adds a Speech Privacy Perimeter surrounding the suite consisting of the original room to be protected along with the ancillary rooms to determine a line in plan or section view where potential eavesdropping can occur. This allows the use of ancillary rooms to form intermediate areas as buffer zones where sound has to go through two sets of walls, doors or ducts before reaching the protected perimeter. This aids in reducing the performance requirements of any single element, in particular doors and glazing and ducts in order to reach the required level of SPC.

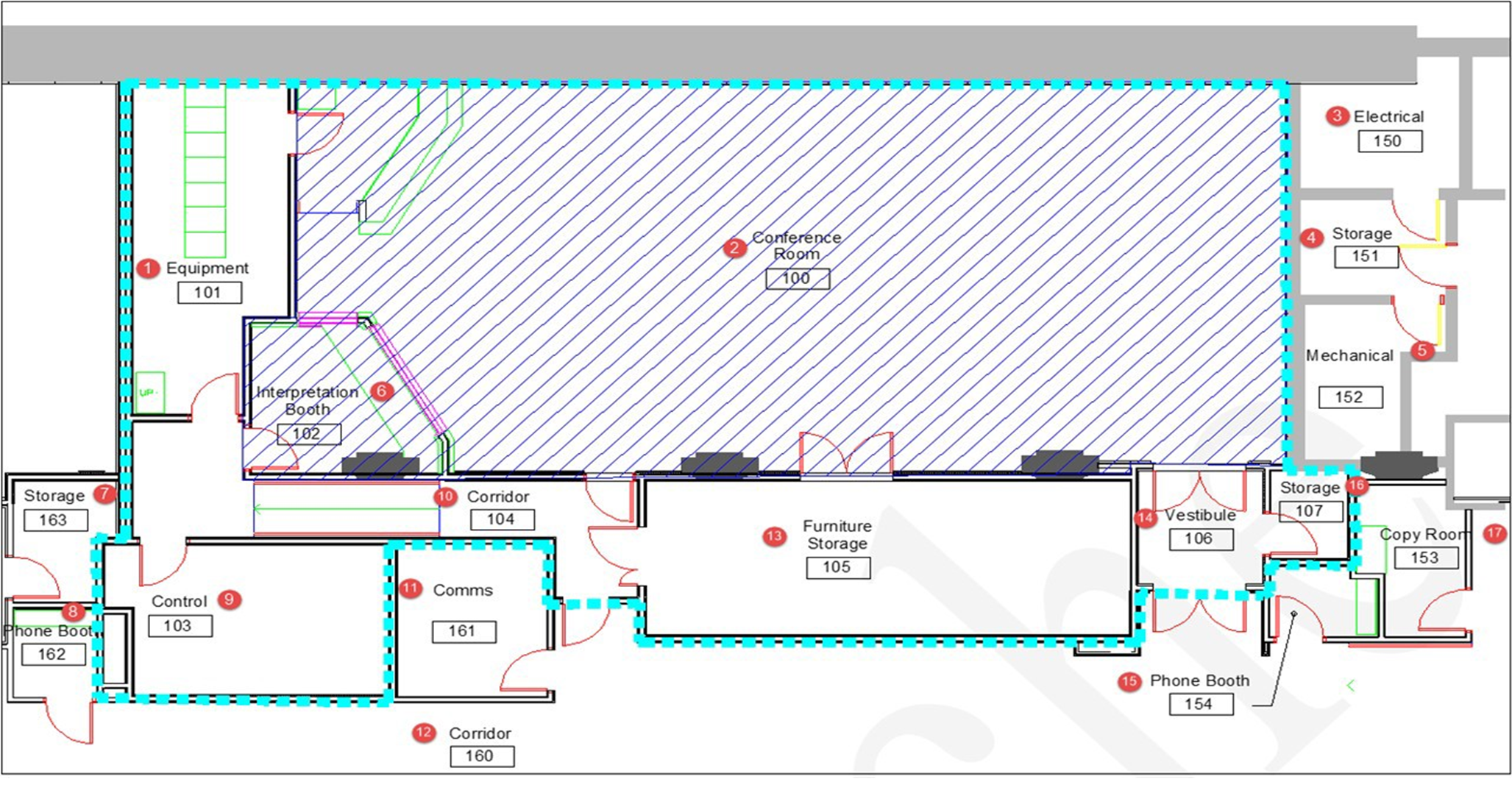

Figure 1 illustrates a large Conference or Boardroom/Meeting Room Suite with multiple ancillary spaces typically associated with such suites. There are some rooms which form part of the suite, and these rooms are accessed from within the suite itself. There are only two entrance points, the first through a double set of doors through a vestibule Rm 106, and the other a single door through a corridor Rm 104. All of the rooms that form part of the suite have been identified by room numbers in the 10X range, starting with the meeting room itself, Rm 100 through to the small storage room, Rm 107. The Service spaces surrounding the suite on the right have been given numbers in the 15X range, and these might be mechanical and electrical rooms. Other rooms unrelated to the suite in question have been given numbers in the 16X range, and these include the primary access corridor Rm 160, along with rooms part of another suite, Rm 163 and 164, as well as an unrelated room for Communications, Rm 161. The thick wall at the top is an exterior wall.

The first task that needs to be done is to identify rooms might have voice sounds needing to be protected from eavesdropping. In this particular example, other than the large meeting room Rm 100, the only other room where speech needs to be protected is the interpretation booth, Rm 102. It is in that room that the interpreters repeat in their own voices but in a different language what was said in the meeting room. Thus speech from the interpretation booth needs to be protected. It is assumed that any person in the suite will wait to be in either of those two rooms, and with all doors closed before discussing protected material

Figure 1 also shows the areas to be protected as a hatched floor area. In some cases, it might be the case that the Control Rm 103 forms a part of the area to be protected as the sound picked up by the conferencing microphones in the meeting room might be amplified over loudspeakers for quality monitoring by the control room personnel. However, in this case it was determined that there would be no such sound reproduction in the control room and that this area did not need to be protected.

Once the areas to be protected have been identified, diagrams showing the area to be protected similar to Figure 1 should be presented to the persons responsible for determining SPC requirements to confirm that the areas indicated are indeed the only areas needing to be protected.

If the areas to be protected have been fully determined, then one can proceed to the next task which is to determine the Speech Privacy Perimeter (SPP). The SPP is simply a line surrounding the Protected Area, and it can also enclose multiple rooms which do not form part of the Protected Area. The benefit of this is that it allows surrounding rooms to form buffers for sound to pass through. This can enhance speech privacy similar to using vestibules to provide sound locks to counter the difficulties using single doors to contain sound adequately. These buffer rooms also provide spaces for ducts, HVAC terminal units and building connectivity to enter the suite without going directly through the walls surrounding the areas to be protected from an area of potential eavesdropping.

Figure 1 also includes a dashed turquoise line to identify the Speech Privacy Perimeter, which effectively surrounds the Protected Area, but not directly along the walls of the Protected Area itself. The SPP actually includes all of the rooms in the number range of 10X. This is because the floor plan has been organized in such a manner as to require entry into the suite via one of the two entrance door points in order to gain access to the rooms inside the SPP which do not form part of the Protected Area. The only reason this is possible is because careful consideration was given to establishing a SPP in the design of the floor plan, by organizing the room adjacencies, the corridors and entrance points for each room. The example shows the final design arrived at from a series of initial layouts. These layouts were revised during the design process to satisfy all of the suite's requirements while providing an effective Speech Privacy Perimeter.

The SPP forms a line along which a person could try to overhear speech from the Protected Area. It also forms a line along which one might agree to test the value of the SPC, and outside of which one does not expect to control access. Any area contained inside the SPP forms part of a controlled access zone and does not in itself require the highest levels of SPC. However, it always needs to be considered that the walls within the SPP require a high level of average Transmission Loss (TL(avg)) rather than a particular STC rating in order for the buffer rooms and vestibules to function effectively to block sound and provide the required speech privacy for the protected area. It may be required to test the performance of intermediate walls inside the SPP to guarantee performance along the SPP. In some cases, it allows the use of only one acoustically rated door with the second one being only a regular solid door, for example, with seals all around.

In the example, the SPP line is generally not along a wall directly closing off the Protected Area, but rather along the walls of the rooms serving as sound isolation buffers. This type of design will be the most successful in terms of providing high levels of SPC, and should always be considered for rooms requiring high security, in particular for rooms with multiple doors along their perimeter, and rooms where speech is amplified over loudspeakers.

In situations where the SPP needs to be along a wall directly at the perimeter of the protected area due to planning or space constraints, such as between rooms 100 and 150, 151 and 152 in the example in Figure 1, the penetrations need to be minimized. Ducts should not be run through these walls, and all other penetrations for electrical, communications, etc. should also be minimized. These building services should rather go through the buffer rooms, such as Rm 105 for instance.

SDA's and SCIF's and SPC

This document does not address all the issues normally addressed in documents describing the requirements for Special Discussion Areas (SDA's) and Secure Compartmentalized Information Facilities (SCIF's) as these documents deal not only with the isolation of sound and thus speech privacy, but also physical security and other security issues such as the actual levels of security required depending on the functions of the rooms involved.

It is hoped however that the acoustical parts of these existing and generally old documents will be replaced by elements from this document based on SPC ratings, since the acoustical recommendations found in the older documents are outdated and often have not been proven to function adequately in terms of sound isolation. They have certainly not been written in terms of SPC ratings, as the standard did not exist when those documents were prepared. It is very difficult to find the sources for the designs recommended, the science behind the recommendations, or any test results backing up the recommendations relating to acoustics in the SDA and SCIF documents. Also many agencies simply copy and adapt old documents to make their own documents. An example is one document that only allows a staggered stud wood wall built on a common floor plate for adequate acoustical isolation. This is clearly not representative of modern building construction and ignores the dozens and dozens of other wall types which will provide even better sound isolation. The documents do not deal with background noise, and this is absolutely fundamental to the level of speech privacy obtained. As experience is gained in the design of high SPC construction, the documents relating to SDAs and SCIFs will hopefully be re-written and refer to this Guide which is based on scientific research on perception and performance, as well as on tests in real buildings, or at least incorporate elements of this guide.

Wall selector

At the design stage, speech privacy criteria are specified in terms of SPC values defined in ASTM E2638 and in section 7.

Formula: SPC ≈ TL(avg) +Ln(avg) - Where TL(avg) is the 'average apparent sound transmission loss' of the room boundaries and Ln(avg) is the 'average background noise level' at the location of a potential eavesdropper. In both cases '(avg)' indicates arithmetically averaging the decibel values over the speech frequencies from 160 to 5,000 Hz. The SPC rating is based on the understanding that both ambient noise levels and transmitted speech levels influence the amount of speech privacy.

This section provides extensive tables of TL(avg) values from laboratory measurements of sound transmission through various constructions. These are the same test results from which STC ratings are determined, but TL(avg) values have been found to be much more accurate predictors of the speech privacy provided by the wall.

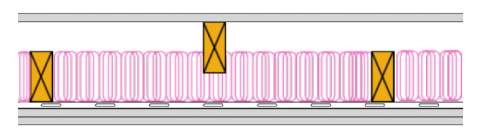

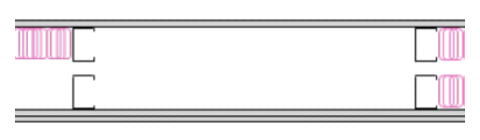

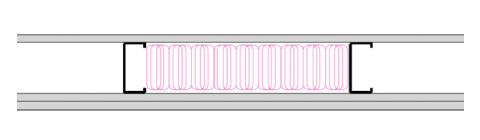

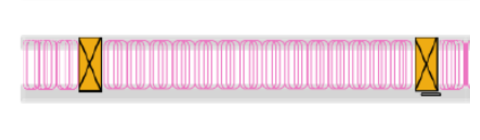

TL(avg) values are provided for 74 types of stud wall constructions from standard laboratory test results in Table 2. This table includes a section drawing through each construction type and includes the results of combinations of 13 stud configurations and 6 different arrangements of gypsum board layers. The 6 combinations of gypsum board layers that were described in Table 3. The 13 different stud configurations are described Table 4. The table also includes STC ratings of each construction. However, STC values are only approximately equivalent to the TL(avg) values and are only included for those more familiar with STC values than TL(avg) values.

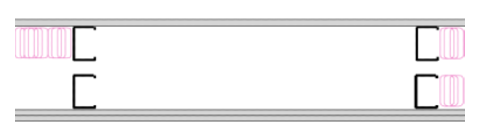

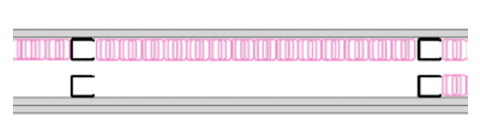

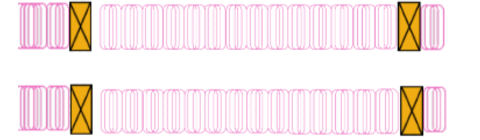

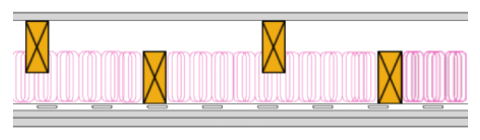

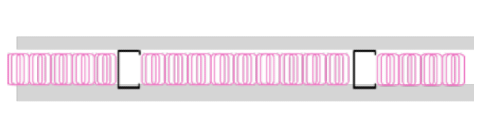

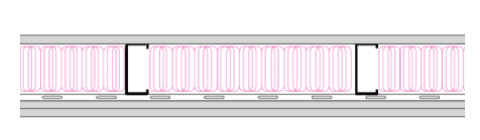

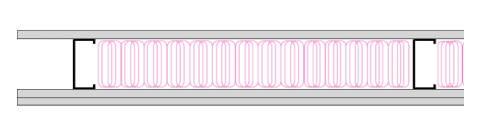

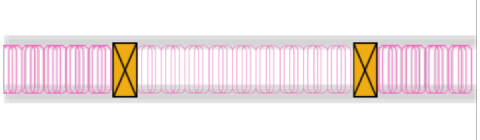

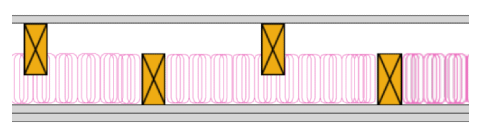

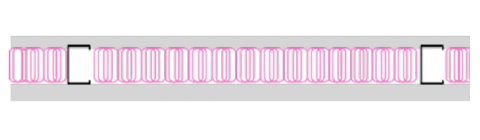

Table 2: TL(avg) and STC values for types of gypsum board walls

TL(avg) /STC values	13 mm gypsum board			16 mm gypsum board
Construction	1 & 1	1 & 2	2 & 2	1 & 1	1 & 2	2 & 2
	51.0 / 35	53.5 / 40	56.7 / 46	51.3 / 40	54.9 / 45	58.2 / 52
	49.5 / 43	53.1 / 48	55.9 / 54	50.9 / 43	54.3 / 50	56.6 / 55
	52.0 / 42	54.4 / 48	57.4 / 53	51.5 / 45	55.3 / 50	58.3 / 54
	52.3 / 48	55.1 / 53	55.9 / 55	51.9 / 49	54.6 / 53	57.6 / 56
	55.1 / 48	58.8 / 54	62.7 / 60	53.5 / 60
	53.8 / 43	57.1 / 48	61.0 / 55	52.0 / 45	57.3 / 51	60.7 / 56
	53.2 / 47	57.3 / 54	60.5 / 59	54.4 / 49	57.3 / 54	61.3 / 59
	54.1 / 45	53.8 / 50	56.2 / 53	50.8 / 49	54.6 / 53	57.2 / 57
	63.7 / 50	65.7 / 54	66.7 / 60	60.7 / 53	65.1 / 58	65.9 / 63
	57.8 / 49	63.6 / 54		53.4 / 52	61.7 / 56	68.6 / 62
	61.6 / 53	63.8 / 59	66.1 / 63	65.8 / 55		69.6 / 65
	59.3 / 54	62.4 / 60	64.5 / 62	58.5 / 55	62.2 / 61	64.9 / 65
	59.3 / 54	62.4 / 60	64.5 / 62	58.5 / 55	62.2 / 61	64.9 / 65
	66.6 / 55	70.2 / 59	72.6 / 65	67.9 / 59	68.8 / 64	72.2 / 68

In addition to the data for stud walls, TL(avg) values are also included for 20 types of concrete block walls with various combinations of gypsum board surface layers in Table 5. The data is from an extensive research study of the sound insulation provided by concrete block walls [11, 12]. The two types of concrete blocks included are described in Table 6. The concrete block walls include 16 mm Gypsum board attached to one or both surfaces using one of 5 systems described in Table 7.

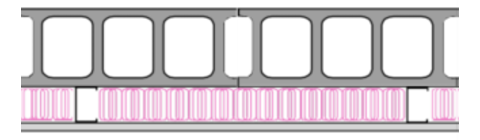

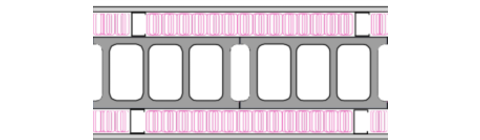

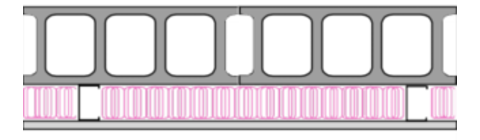

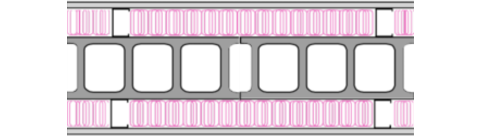

Table 5: TL(avg) and STC values for 20 types of block walls

TL(avg) /STC values	Single layer G16 supported by one of:
Construction	WS40	RC13	ZC50	SS65	ZC75
	55.0 / 54	55.7 / 53	57.9 / 58	60.6 / 60	60.6 / 61
	60.2 / 60	61.6 / 54	65.9 / 66	71.5 / 72	71.5 / 72
	60.2 / 60	61.6 / 54	65.9 / 66	71.5 / 72	71.5 / 72
	60.9 / 60	62.2 / 50	66.1 / 65	72.1 / 71	72.1 / 72

It is common practice to select constructions with laboratory results up to 5 points higher than the minimum required value. Although such over design may compensate for some construction flaws, where the apparent sound transmission is limited by flanking paths, little benefit may be obtained from the over design of one particular element. In a real building the apparent sound transmission would depend on the relative importance of the various sound paths. Flanking paths can lead to lower than expected apparent TL(avg) values in field situations. The design needs to also include the effects of flanking paths and doors in calculations to determine the expected apparent TL(avg) of the room boundaries.

In addition to the data for concrete block walls with various combinations of gypsum board surface layers with cavities in Table 5, data is presented for block walls with no finishes or directly attached finishes without cavities in Table 8.

TL(avg) and STC values for common window/glazing assemblies are presented in Table 9. In this case both single regular and laminated glass values are presented for varying thicknesses of glass, from 3 mm thick to 13 mm thick, and for some common doubled glazed assemblies.

TL(avg) and STC values for regular and acoustic doors of various types are presented in Table 10a and b. Doors are identified steel or wood.

TL(avg) and STC values for various types and thicknesses of concrete floors are presented in Table 11. Concrete is either monolithic as used in buildings with concrete structure or over corrugated steel deck as used in steel framed buildings.

Most common causes of failure in terms of SPC

Listed below are some of the most common causes of failure to achieve high levels of SPC in terms of construction. One also needs to consider causes due to process and decision making as outlined elsewhere in this document:

Doors

Leakage around doors is the primary cause of failure to achieve high SPC. Door frames are typically not square and plumb unless carefully installed and inspected, meaning that door seals do not block sound all around the door frame, or that when adjusted, doors are too hard to close. Door frame are required to be installed to within 1.6 mm of level and plumb. Doors need to have latches that pull the door tight against the seals. Doors cannot be warped as this prevents seals from properly contacting the door all around. Door seals need to be of a type that can be adjusted, and that have been tested to achieve a given STC. Door thresholds are required to be level and parallel to the bottom of the door. Concrete floors need to be levelled before the thresholds are installed, and thresholds are required. Sealing to a carpet floor is not sufficient. Adjustable drop bottom threshold seals need to be parallel to the threshold and evenly sweep across the threshold, sealing all along the length of the door bottom with no gaps. Where vestibules cannot be used, doors would be required to be acoustically rated, and installed by contractors experienced in the installation of such rated doors. Even acoustically rated doors are commonly a point of failure due to improper adjustment and installation or specification. Even when vestibules are used, for high SPC values, one of the doors should be acoustically rated. Double doors are also to be avoided as the seal at the astragal is particularly problematic, as is incorrect alignment of the doors where they meet in the centre. Double doors have twice the length of door seal and thus twice the likelihood of failure. Double doors should only be used as part of a vestibule.

Window Mullions

Walls terminating at the expterior of a building's perimeter onto lightweight aluminum window mullions cannot provide high levels of SPC. Curtain wall construction does not provide a necessary condition for adequately isolating sound. Only moderate sound isolation can be provided at such window mullions. As it is not possible to fully seal a wall at a mullion, intervening spaces or rooms such as those used for storage need to surround the room to be isolated. This is very space inefficient, unless adequate planning is made to locate such buffer rooms in a secure suite around rooms requiring high levels of SPC.

Glazing

Any glazing or sidelights need to have a rating in terms of sound transmission almost equal to that of the wall. This means double glazing using laminated glass and large airspaces. It is very difficult and expensive to provide glazing that has a rating equal to the wall. As a general rule, unless significant precautions are taken, glazing is not to be included in the design of walls surrounding rooms with high values of SPC.

Ductwork

Sound travels very easily through ductwork. Sound goes in directly through air openings such as diffusers and return grilles. Sound also enters directly through ductwork walls, as the sound isolation performance of a duct wall is very much lower than that of a high TL drywall or masonry wall. Consider that a wall made of a single layer of sheet metal as used for ductwork would have a very poor level of sound isolation. Thus duct design needs to be made in such a manner as to prevent sound leakage between rooms. This means that terminal boxes cannot feed any room outside the room being sound isolated, or outside the suite being isolated. Ductwork needs to be lined with minimum 25 mm thick duct liner, and be provided with elbows to attenuate sound adequately. Un-lined duct is extremely poor at preventing sound from travelling through it. One large duct will attenuate sound much less than multiple small ducts due to the effect of the perimeter/area on duct attenuation. One of the most problematic areas for duct design is the routing of long supply ducts over spaces to be protected, and common return air plenums. This causes significant sound leakage between rooms. High levels of SPC are generally only possible when ducts feed along corridors or service spaces and then branch off toward terminal units such as VAV or fan powered boxes serving protected rooms. Duct layout plans need to consider speech security requirements for both the supply and return paths. The floor plan needs to allow for adequate room to route ducts outside of the rooms or suites being protected.

Perimeter Induction and Convector Units

These are very problematic as there are air ducts running between induction units that can leak sound from room to room and floor to floor. Convector covers need to be cut and the wall run slab to slab and edge to edge. It is not possible to achieve high levels of SPC when induction or convector units run continuously between rooms, unless buffer rooms are placed around rooms to be protected. The only benefit from induction units is the high noise they produce which improves speech privacy. However, this is offset by the high sound leakage

Building Connectivity, Conduits and Cable Trays

Requirements for large amounts of electronic services such as IT and AV in some rooms mean that many cables are run to many patch panels, devices or junction boxes. These often require large amounts and sizes of conduits and cable trays. Any room with a cable tray or large open conduits traversing the wall will have very poor SPC performance. Cable trays cannot traverse walls of high SPC rooms. These trays need to be interrupted and cables passed through the wall via multiple small conduit stubs sized in the range of 25 mm diameter, and spaced such that they can be sealed all around, and cables sealed to the conduit stubs once installed. For rooms with large amounts of electrical boxes, chase walls are required to effectively place the boxes and conduits on the surface of a high performance wall, with a second wall over the main wall to cover the conduits and frame the boxes. Another point of failure is an excessive amount of electrical boxes and large numbers of boxes in a single wall or multiple boxes in a single stud cavity. The more boxes there are, the higher the degradation of the wall. The larger the electrical boxes are, the more degradation of the wall. It is very easy to lose 5 to 10 dB in terms of transmission loss due to the presence of an excessive number of electrical boxes. A single box on each side of a 3-4 metre section of wall will not cause significant degradation of performance, but as the number and size of boxes increases, performance is reduced. Short sections of walls have been observed with over 20 single gang boxes total, and this type of condition is not conducive to high levels of SPC.

Stud Gauge and Stud Spacing and Bracing

Many types of walls require heavy gauge studs. These studs very significantly reduce the acoustical performance of a wall, and this is not common knowledge. It is imperative that the stud gauge be indicated on all of the building drawings and details and that the installed stud gauge is confirmed. Where heavy gauge studs are required for wind resistance, height requirements or intrusion protection, resilient channel or double stud construction needs to be used. Walls with studs spaced at 600 mm O.C. will provide the highest level of SPC. When stud spacing is reduced to 400 mm O.C., sound isolation performance is reduced. However, on site, multiple studs are often added in a wall to provide support for drywall in corners, for conduits and electrical boxes, for door frames and glazing frames, or for other devices to be supported. The more studs are added over the base design of a 600 mm nominal spacing, the stiffer the wall gets and the lower its performance. Walls are commonly observed on site with more than double the number of studs per linear dimension than intended in the design. All unnecessary studs have to be removed. Box sections of studs which are extremely stiff particularly should be avoided in walls. When this is not possible, even with light gauge studs, resilient channel need to be used or double stud construction.

Gaps in Drywall

Drywall needs to be installed with gaps kept to a minimum at the perimeter to the floor, ceiling and corners, and between all edges. When any large gaps are present and simply covered over with drywall tape, significant sound leaks will occur, and these are often difficult to find. Thus all drywall gaps are to be inspected before any taping occurs, and any gaps over 6 mm corrected with new pieces of drywall. Each layer of drywall needs to be inspected before taping, and after taping and caulking.

Ceiling Tile and Plenum Barriers

Walls which are not built slab to slab generally have very poor levels of SPC. This is true for any wall where the ceiling tile runs continuously between rooms, or where a raised floor runs continuously between rooms. The gap at the T-bar ceiling and through the lightweight ceiling tile are both very significant leaks of sound, independent of how well a plenum barrier is built and sealed above the ceiling tile. And plenum barriers are extremely difficult to build well, due to limited access and interference with the T-bar. High levels of SPC are simply not possible when the acoustic ceiling runs through between rooms. Only slab to slab walls should be considered. Experience with floor plenums is limited, but performance is generally poor due to return openings in floor which let sound travel from room to room. While raised floors use significantly heavier materials than do T-bar ceilings, gaps at the floor make it difficult to achieve an adequate sound seal. Moderate values are possible for SPC, but until more research is done and tests performed on such raised floors, caution is best. Under-floor plenum barriers are difficult to build and seal adequately, and limit flexibility. Again for these types of constructions, it is best to remove the floor tiles, build slab to slab walls, and cut and re- install the floor tiles.

Steel Deck Profiles

Steel decks provide a particularly difficult challenge to high SPC construction. The profiled shape of the deck makes it very difficult to obtain an adequate sound seal. When the deck is covered in concrete, the main issues are sealing at the deck and all around the building's structural elements such as joists and beams and all the required cross-bracing. The best solution is to provide continuous drywall sections pre-cut to the deck profile and placed over the last layer of drywall on each side, and to caulk these strips to the other drywall and to the deck. Pre-formed deck foam fillers and strips are generally not adequate to provide high levels of transmission loss. Profiled steel decks without concrete on top such as for building roofs in steel and other buildings are even more problematic. Even when fully sealed with strips of drywall on both sides, sound will enter the deck and pass over the wall via the deck through a process referred to as flanking. No matter how good the wall is, performance is limited by sound travelling through the steel over the wall. In this case it is best to shield the deck from sound with at least an acoustical tile ceiling on both sides of the wall, or with a drywall ceiling below the deck. Tests of SPC generally give much better results in concrete buildings than steel framed buildings, as there is very little flanking via the concrete slabs, and it is much easier to seal the walls to a flat concrete surface than to a profiled steel deck and all the intervening steel structural elements.

Low Background Noise

As noise is just as important to the value of SPC obtained as is wall performance, low levels of noise in any room will lead to lower levels of SPC. Noise levels need to be balanced between those required to obtain desired levels of SPC for a particular transmission loss of the construction and those levels of noise which may cause discomfort or even reduction of productivity or difficulty in communicating. One can assume that perhaps the higher levels of noise for any type of space as recommended by ASHRAE are the maximum limits to be used. It is also of note that mechanical noise in the lower 1/3 octave frequency bands of 125 and 63 Hz listed in AHSRAE are of no consequence to the value of SPC obtained, and thus noise in these bands can be low to help with noise comfort issues while noise in the upper bands might be a little higher to aid the SPC value. When background noise is uncertain, variable or simply too low to obtain adequate levels of SPC, one should add noise masking, designed selectively to optimize the values of SPC where required.

Design Examples

This section uses three building examples to illustrate some of the many design details that were necessary to achieve high speech privacy.

Achieving high STC results in typical office buildings is very difficult. If it is to be accomplished, the entire design team, including communications and AV need to cooperate to achieve the results. The requirement for high sound isolation will drive the design to a large extent. However, if it is a client requirement, there is no other demonstrated methodology for creating high isolation spaces within standard office construction. The building illustrated in the following section does not have glass curtain wall, which poses particular challenges and will generally require separating the speech private space from the curtain wall with buffer spaces along the perimeter or the addition of drywall walls along the window wall in the critical space.

The following details and notes result from various successful projects in the National Capital area, for which details were designed by acoustic, architectural and mechanical specialists. These details were very carefully inspected during the construction process and the rooms were thoroughly tested after construction, using both SPC and STC (Sound Transmission Class) test methodologies. The construction consistently delivered the sound isolation required to meet the most stringent requirements of speech privacy and sound isolation. The details and design approach represent a tested system of components, all of which are required to meet the challenge of providing high sound isolation in a standard office building. Dropping or changing some elements, for example, deleting vestibules or connecting rooms through ductwork in ways other than illustrated will normally result in seriously degraded performance.

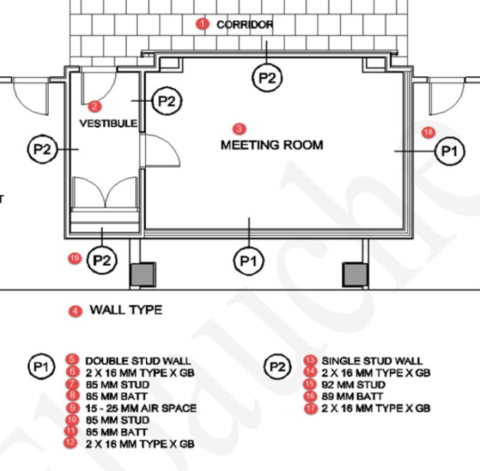

Example 1: Meeting Room

This plan arrangement uses double stud partition walls against other adjacent, occupied spaces. The double wall (P1) has a lab STC in the range of STC 65 (TL-93-286) and with no mechanical penetrations it tested in the range of ASTC 60 in the field. It allows for a number of electrical boxes without serious degradation of the sound isolation. It also allows for blocking on one side of the wall as required, usually replacing the inner layer of drywall with plywood, without affecting the other side of the wall. The two faces of the wall cannot be bridged with any component in order to retain the STC rating. In this wall type, there is less risk of compromising the isolation due to extra studs, blocking or conduit placement as stiffening one side of the wall does not compromise the other side.

Note that the wall type on the vestibule and corridor sides is a single wall, having an STC in the range of 56 (TL-93-351). Walls that face onto the corridor can be less secure than walls onto adjacent occupancies as the corridor is easily surveyed for eavesdroppers and the corridor in this mechanical design has a higher background sound level (NC level) due to the presence of mechanical devices in the corridor (i.e. vav boxes, motorized dampers etc.). The vestibule cannot be replaced with a single sound rated door without degrading the performance of the isolation. The vestibule serves both as a buffer zone for sound leakage through doors and as a buffer zone for sound leakage through the ducts. The vestibule does not have to be as large as in this example, but in this case it is large enough for a closet and some storage. However, it has to be large enough to provide space for the entire length of the return air ductwork and other HVAC elements.

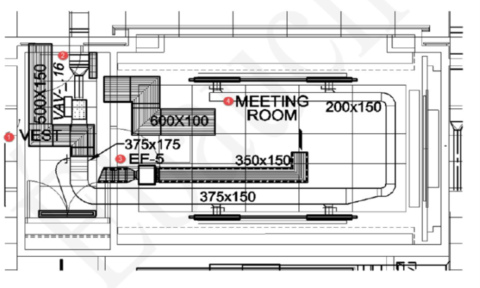

Note that the supply ductwork enters the suite through the vestibule only, no other perimeter walls have duct penetrations. A single duct penetration in any of the other walls will result in at least a 10 point (STC) drop in performance due to the relatively low STC of the ductwork.

The supply, entering through the vestibule in the vicinity of the door, in order to concentrate the potential sound leakage at one position only, then moves through the vestibule into the meeting room itself. The return air is transferred via a fully lined (25 mm Type II rigid ductliner board), double elbow type return duct and is constrained in height to 150 mm including lining in order to reduce crosstalk. The return air transfers into the vestibule and then from the vestibule into the corridor, thus doubling the attenuation.

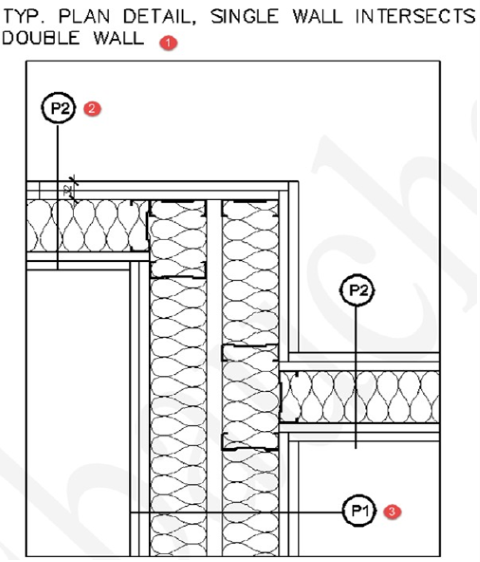

The above detail illustrates a typical junction of single to double walls. It is critical that the interior cavity of the wall is maintained and not breached by extending drywall across the junction. It is critical that the number of studs in a wall be kept to an absolute minimum and that the stud gauge is kept to 25 ga for a single stud wall. The acceptable stud spacing will be as close as possible to 600 mm. The presence of drywall or other elements bridging the cavity for any reason will seriously degrade the performance of the wall due to flanking transmission (this was confirmed by testing on site). The walls need to extend from slab to slab as a continuous partition. Each layer of drywall is taped, with tight joints all around. Deflection joints are not permitted unless they have the same STC as the wall below. Similarly, these results cannot be achieved when sealing to a metal deck without the addition of a drywall layer installed to the underside of the deck over the space to enhance the sound isolation of the wall by reducing flanking noise transmission through the deck. The tested assemblies were between concrete slabs only.

The recommended sealant is red fire caulk, for ease of inspection as well as efficacy. Sealant is required at the top and bottom perimeters on every layer of drywall, where it can be easily inspected. Sealant is not required under the tracks.

In this detail, note that the drywall does not run through any junction of walls, maintaining the cavity clear of bridging elements including drywall is critical. Note also the presence of an electrical box, with insulation run behind and around the box and sealant as noted.

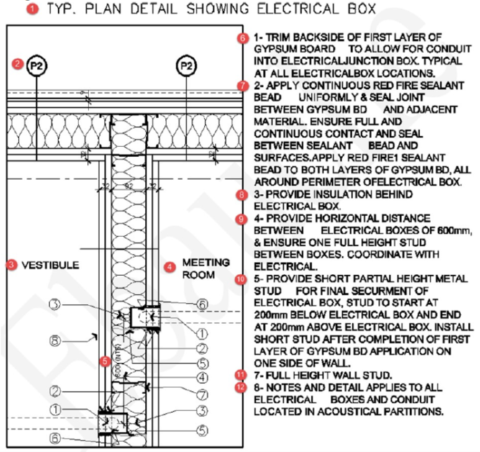

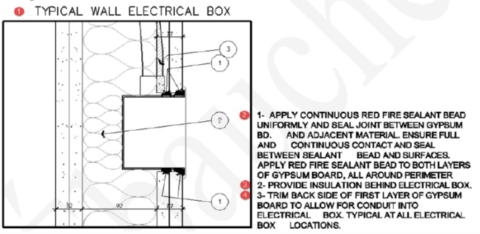

Electrical and AV boxes need to be in separate stud cavities and the number and size of the boxes will have to be restrained. Similarly, the number and size of conduit needs to be minimized. In this project, conduit was kept to 25 mm, with more conduits being added to accommodate the volume of wiring. Controlling box numbers and conduit size should begin early in the project, with all involved parties being made aware of the potential loss of sound isolation integrity that is at risk. If achieving an STC rating in the field of over STC 50 is a client requirement, box numbers, sizes and conduit numbers and sizes will have to be sacrificed to achieve it. It is very common to have walls fail to meet the target STC's if too many boxes or too large boxes or conduit are placed in a wall.

The optimum box choice for these applications would be a masonry box, which has less open area than a standard box and higher mass and thus a higher transmission loss.

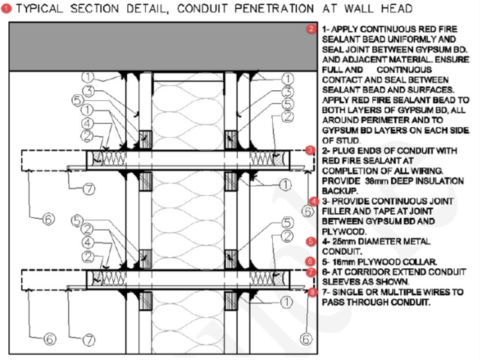

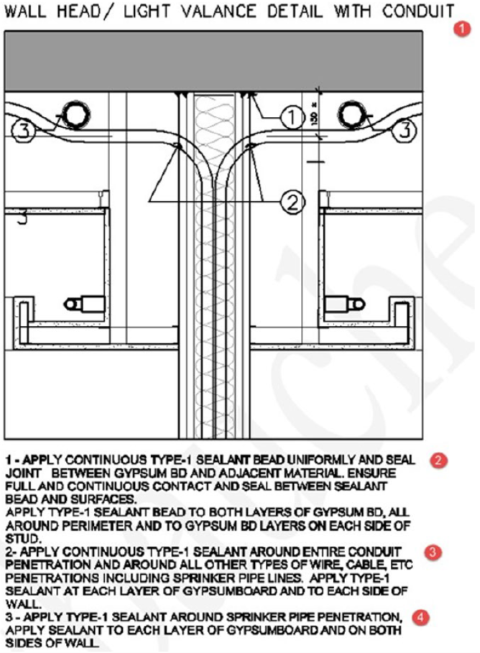

This detail shows the approach at the wall head to conduit penetrations (see also Figure 12). The conduit have been restrained to 25 mm size, and collars are created for each side of the wall by drilling matching holes in plywood, sized for the number of conduits and replacing drywall on the inner layer. The conduit spacing can then be tightly controlled and each hole can be sealed with caulk. No conduit is placed tight to the slab where it cannot be completely sealed. The sealant used is the red fire caulk, for ease of inspection.

Conduits and all pipe penetrations should be positioned such that it is possible to access the space all around to install gypsum board covering all gaps and to access all gaps for caulking fully. Conduits cannot be placed in banks, nor tight to the slab.

In the detail above, note that the radius bend of the conduit needs to be accommodated in the wall for single conduit. This detail also shows the approach to the wall head where the drywall makes a tight fit to the concrete and is sealed at the face of each layer. Any additional drywall details such as light valances are created over the rated wall with no interruption to the drywall of the rated wall, and as little blocking as possible. Single stud partitions perform best if they are constructed with as few, and as light, studs as possible. Increasing the number of studs and especially increasing the stud stiffness is very detrimental to the sound isolation rating and needs to be avoided in single stud walls. No elements such as drywall bulkheads or valances can be constructed so as to breach the rated walls.

Example 2: Executive Office Suite, Configuration 1

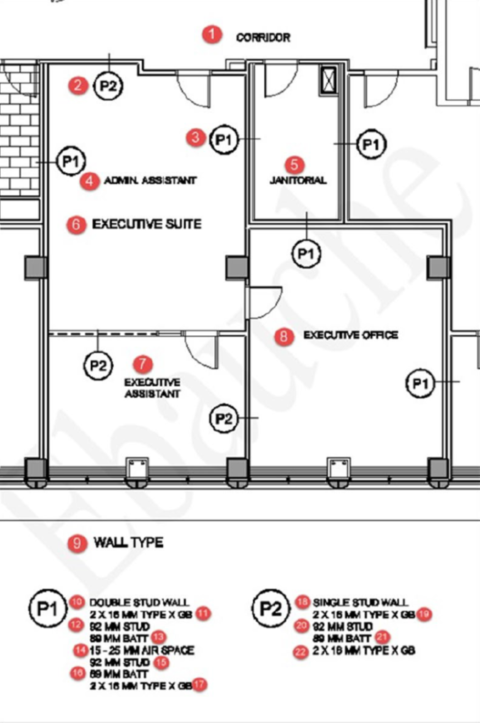

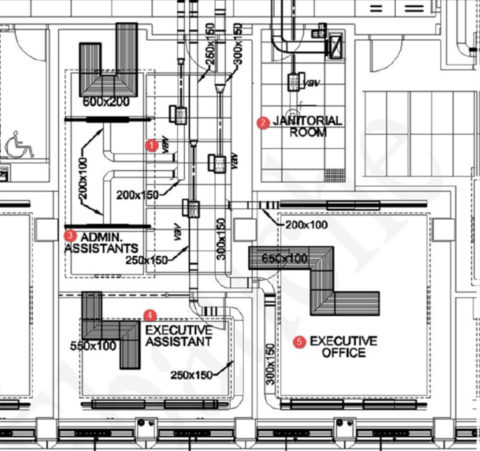

In the plan example of Figure 9, the executive suite is composed of an outer office for the administrative assistant, a secondary office for the executive assistant and the executive office itself. In this layout, the admin area serves as the buffer zone for speech privacy in the executive office. The assumption behind the organization is that the admin can be privy to some conversation leakage from the executive office. Thus, this plan protects the executive from eavesdropping in the corridor. The plan does not rely on sound rated doors, which are difficult to use in practice, being heavy and hard to close if well fitted. However, the doors are solid core wood, fitted with STC rated sound seals all around and carefully installed and inspected to reduce seal gapping due to out of square installation or warping. To reduce the sound leakage to the admin area, sound masking can be added to the admin area to make conversation difficult to understand. Sound masking should not be added to the critical room, as it will cause the speaking person to raise their voice in order to preserve the same signal to noise ratio.

This example also contains a janitorial room, which poses a risk for eavesdropping, and is thus enclosed with a high performing double stud wall. The double wall type is also used to separate the executive from adjacent occupancies and the admin and assistant from adjacent occupancies. The demising walls to other occupancies are also penetration free to maintain their high rating. In particular, there are no ducts of any kind traversing these walls. Note also that the walls end at solid pilasters on the exterior, to maximize the sound isolation at the window. If the building did not have solid pilasters on the exterior wall, other strategies would have to be used to prevent sound leakage at the window walls. Under no circumstances, could perimeter heating units penetrate these walls, if their sound isolation rating is to be maintained. Perimeter piping can penetrate the walls if necessary, but cabinets and radiator fins have to be cut back to the wall faces and no control valving can be allowed to breach the critical walls. If the building had glass curtain wall, an interior wall would have to be created along the window wall to restrain sound leakage through the mullions. Mullions alone have almost no ability to block sound and ending a wall at a mullion will generally result in ASTC test results in the 20's, regardless of the wall type or configuration.

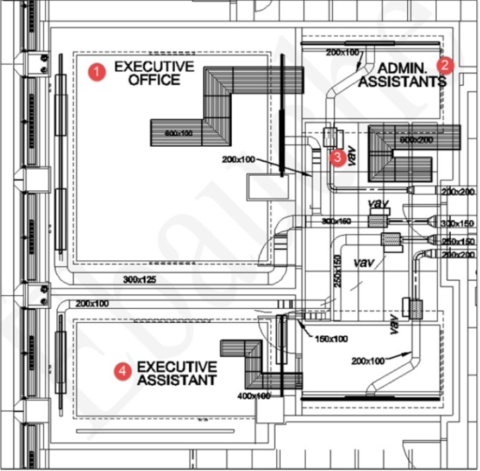

In the mechanical layout for the suite, the supply and return duct enters only from the corridor, and no ductwork breaches the critical demising walls. The supply ducting is split in the corridor for each of the included rooms which reduce crosstalk in the supply. The VAV boxes are located in the admin area to serve as masking background sound to enhance speech privacy to the executive office. The return air transfers are constrained to 100 mm in height for the executive and assistant, fully lined with 25 mm Type II rigid duct liner and of significant length. The air transfer from the admin area is 200 mm high.

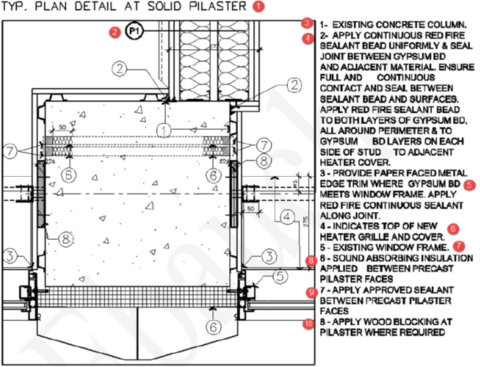

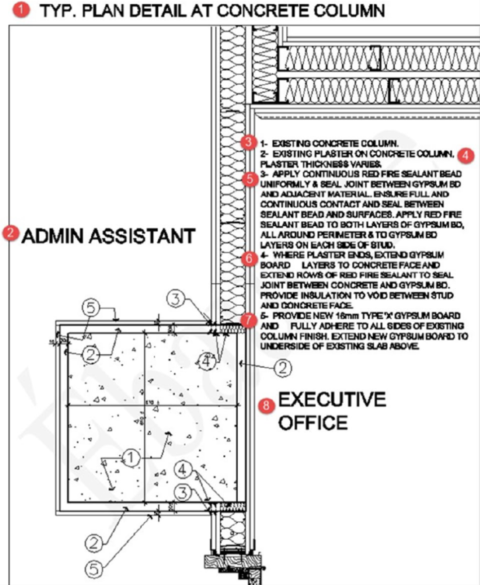

In this detail, note that framing has been stripped off the concrete column, so that there is no void surrounding the column. Rigid fiberglass insulation has been added to the void at the junction of the wall to the column and drywall has been used to fill the void around the column elsewhere.

Note that the wall ends at the concrete pilaster which has been stripped back to bare concrete. Any void areas in the pilaster are filled with insulation and sealed before being covered with gypsum board. This treatment applies from floor to ceiling slab.

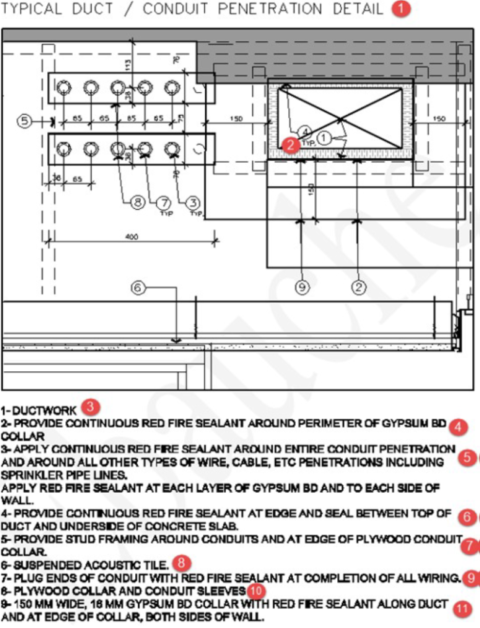

This detail illustrates the plywood conduit collar plate with the whole spacing as shown previously in Figure 6. The holes are sized slightly larger than the conduit and spaced so that they can each be sealed all around. A similar, gypsum board collar is cut and fitted for each duct, to support the duct and allow it to be completely sealed.

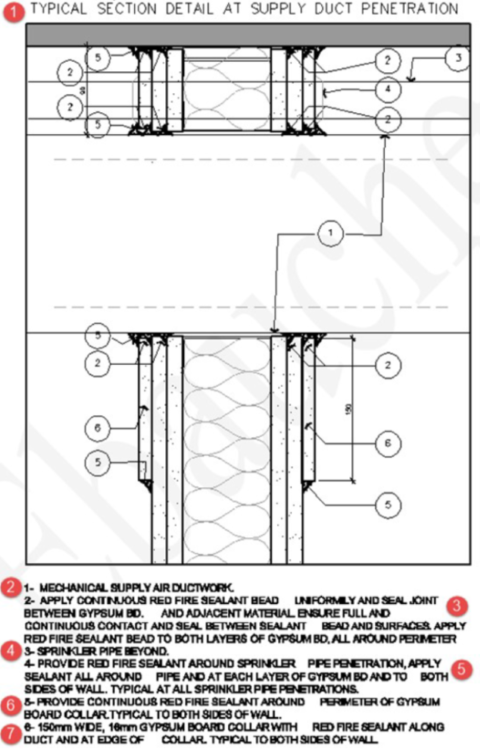

This detail shows a typical wall head with the duct penetration 90 mm below the slab. The wall is completed above the duct, leaving sufficient space to allow the duct to be sealed to the gypsum board using a collar and red fire caulk all around.

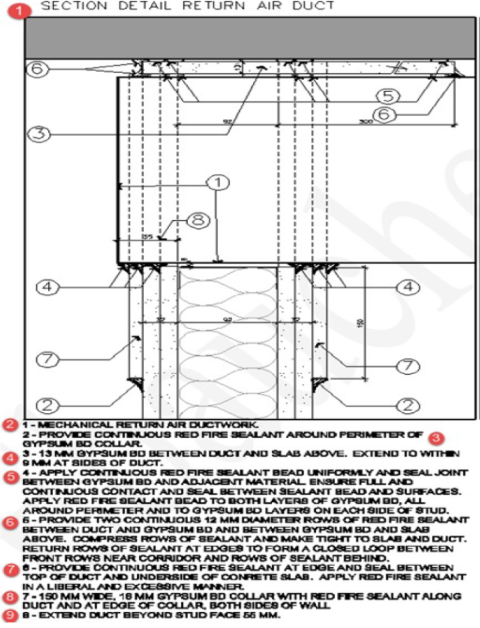

The duct in the example below could not be dropped sufficiently to allow it to be sealed adequately above and thus a gypsum board patch was installed above the duct with caulking applied as the duct was installed to seal above the duct, and the collar positioned at the side and bottom of the duct. This approach should only be used where it is not possible to leave space above the duct and should only be used where it can be completely sealed above the duct.

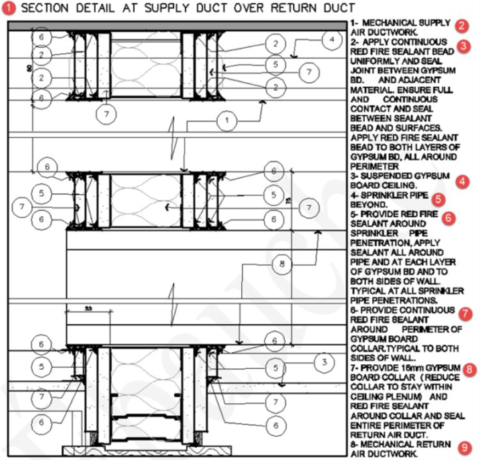

This detail illustrates the approach where ducts are required to be stacked. Note that wall space is left between the ducts for complete sealing and the addition of collars.

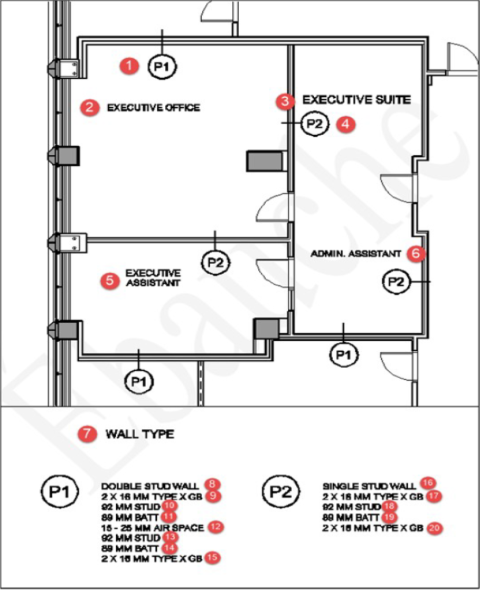

Executive Office Suite, Configuration 2

This plan shows the correct approach to offsetting a wall from a pilaster in order to achieve the space desired. In this plan, the double wall type is used to separate the executive office from adjacent occupancies, but not the executive assistant or administrative assistant, as their speech privacy requirements are lower. As with the previous plan, the executive is protected from eavesdropping in the corridor, but not necessarily from the admin assistant area, which serves as a buffer zone for speech privacy. The walls extend to the pilasters and not to the mullions, in order to maintain the sound isolation integrity.

As with the previous example, the supply ducting for the three rooms within the suite is separated at the main supply in the corridor and enters the suite from the admin assistant buffer zone. The side walls to the suite have no mechanical penetrations. The return air transfers are restrained in height to 100 mm for the executive and executive assistant and 200 mm for the admin assistant area. The return air ducts are double elbow configuration, fully lined with 25 mm Type II rigid duct liner and of considerable length. The return air from the executive office transfers into the admin area and then from the admin area to the corridor, thus adding to the path length for more attenuation. VAV boxes are located only in the admin area to provide masking and enhance speech privacy for the executive office.

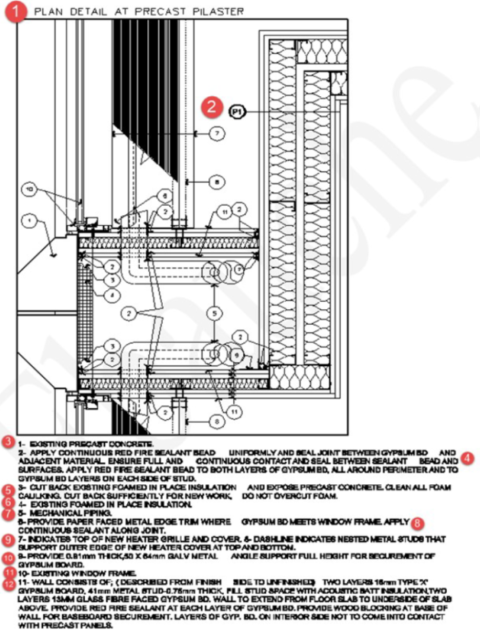

This offset wall terminates at a hollow pilaster, which contains induction piping. Note that the wall surrounding the pilaster has both inner and outer layers of gypsum board to enhance sound isolation.

Design Tips

The following table provides suggestions for details that have proven successful in the past. The services of an Acoustical Consultant should always be retained for projects where speech security is a requirement.

Table 11: TL(avg) and STC values for 5 types of concrete floors

Construction	TL(avg) /STC values
40 mm Concrete, 0.4mm corrugated steel deck and 203mm Steel C-joists	42.7 / 42
100 mm Concrete	50.7 / 47
75-150 mm Concrete over steel deck (75 mm topping)	53.4 / 51
150 mm Concrete	56.6 / 52
200 mm Concrete	57.6 / 58

Verification of speech security designs

To be certain that rooms do have the intended speech privacy it is essential to test them using the measurement procedure described in ASTM E2638-10. This procedure includes measuring ambient noise levels and sound transmission from each source room to adjacent spaces. From these measurements SPC ratings can be calculated and compared with those of the design goals. Where the design criteria are not met, the cause should be determined and the problems rectified.

Conclusions

The construction detailing illustrates a successful approach to high sound isolation and high speech privacy. This approach has been successfully tested and resulted in STC values that closely matched the laboratory ratings of the walls in most instances as well as very high SPC values. Critical to the success of the detailing is regular inspection by the acoustic consultant, whose function it is during construction to track the implementation of acoustic detailing. Also critical is a systems approach to detailing. Choosing to implement some, but not all of the details will often result in the failure to achieve speech privacy as the remaining areas of sound leakage, however small, can completely compromise the result.

Achieving a successful result in the construction of speech secure rooms requires the cooperation of the entire design team including communications and Audio Visual, and the dedication of the design team and the client to the goal.

Assessment of the Architectural Speech Privacy and Speech Security of Closed Rooms

This section describes a framework for interpreting, assessing, and rating the speech privacy and speech security of closed meeting rooms and offices. The document provides a concise technical overview of the underlying concepts and defines categories for rating and setting criteria. This guide also contains a detailed measurement procedure to be followed by technicians or consultants performing field measurements, and guidance for specifying suitable constructions at the design stage. The measurement procedure follows the steps described in a new ASTM measurement standard (ASTM 2638-10).

The approach to assessing speech privacy of closed meeting rooms and offices is based on estimating the likelihood that conversations occurring within the closed room will be audible or intelligible to bystanders outside the room. Whether speech is audible or intelligible depends on the speech signal-to-noise ratio, i.e. how loud the speech is relative to the noise at the listener position. How loud the speech is at a bystander's position depends on how loud the speech is inside the room (which generally cannot be controlled, but can be estimated), as well as the attenuation provided by the sound insulation of the building structure. The background noise at the bystander's position is usually generated by building mechanical systems or other machinery, but could also be generated by occupants or masking sound systems. The current approach uses measurements or design estimates of the sound insulation and background noise, together with statistical estimates of speech levels, to directly estimate the likelihood that speech will be audible or intelligible to bystanders.

The relevant measure of sound insulation is the sound level difference, LD, observed between a uniform test sound field (inside the room) and the received level at spot locations (outside the room). This approach has the benefit of being applicable for talkers who could be located anywhere inside the room, for minimizing the acoustical effect of the receiving space, and for assessing specific weak spots in the sound insulation. The relevant measure of background noise is simply the average sound level at the spot receiver (potential bystander) position, Ln. The sum of the frequency-average of these two quantities is called the Speech Privacy Class, SPC = LD + Ln, which is a single number rating, in decibels, and is a property of the building. The value of SPC determines the protection against a speech privacy lapse, and therefore is used to rate the speech privacy. For design, the level difference LD is estimated from the nominal transmission loss TL of the specified partitions, using LD = TL + 1, and noise needs to be estimated or assumed.

Ranges of SPC corresponding to different categories of speech privacy are defined in this document, along with a description of the likelihood of a speech privacy lapse for each. Users can use this information to define criteria to meet their operational needs.

Speech Privacy/Security

This section describes methods to assess the architectural speech privacy of closed offices and meeting rooms. Included in the scope is what is frequently termed speech security, which means very high degrees of speech privacy. The aim is to assess the degree to which conversations within an enclosed room would be heard or understood outside the room. The term "architectural" speech privacy is used to indicate the privacy provided by the building structure and background noise. The background noise includes that due to the building systems, and also any intentionally added masking noise. The procedures are applicable to any enclosed room, and any adjoining space that might be the location of a potential eavesdropper. These methods are not suitable for use in evaluating speech privacy in open plan spaces. Potential eavesdroppers outside the room are assumed to not be using overt methods (such as touching the walls) or electronic aids (such as microphones or amplifiers), but rather are listening naturally. The criteria for interpretation of the degree of privacy or security are based on the probability of speech being audible or intelligible to attentive bystanders.

Speech privacy and speech security are descriptions of how audible or intelligible speech sounds are likely to be outside of a closed room. This is a 'signal-to-noise' problem where at the listener's position, the signal is the transmitted speech sound, and the noise is the background noise. The intelligibility or audibility of the speech depends on how loud it is, relative to the noise.

Research has identified an objective measure, calculated from speech signal and noise spectra at the listener position, which accurately predicts the degree to which the speech signal is intelligible or audible [1, 2]. This measure is a uniformly-weighted frequency-averaged signal-to-noise ratio, given by Equation 1 below,

where in each of the 16 1/3-octave bands centered at frequency f from 160 to 5000 Hz, Lts(f) is the level of the transmitted speech, Ln(f) is the level of the background noise, and the subscript "-32" indicates that the quantity in square brackets—the signal to noise ratio in each band—is to be limited to a minimum of -32 dB. The result is in decibels, and is larger for less private conditions of high signal to noise, and lower for more private conditions.

A condition where 50% of skilled listeners can just understand speech is the threshold of intelligibility. This corresponds to a particular value of SNRUNI32: in laboratory experiments this was -16 dB [1, 2], but in (somewhat reverberant) real rooms was -11 dB, varying about 1 dB with room reverberation [3]. At a lower signal to noise condition, there is a point where 50% of skilled listeners can just hear speech sounds. This is called the threshold of audibility, and corresponds to a higher degree of privacy. The threshold of audibility corresponds to a SNRUNI32 value of -22 dB (in both the laboratory and in real rooms) [1, 2, and 3].

To apply SNRUNI32 for assessment of closed room speech privacy, it is necessary to determine the transmitted speech levels and the background noise levels at the listener position.

For a given speaking level inside the room, the level of transmitted speech depends on the sound insulation provided by the building structure. More attenuation results in less transmitted speech signal, and therefore more privacy. The relevant measure of sound insulation is the difference in sound level between the average level of a uniform test sound field inside the room and the received level at a spot listener location outside the room [4]. If the average level of the uniform field is Ls(f) and the corresponding received level is Lr(f), then the level difference in each frequency band is LD(f) = Ls(f) - Lr(f). A uniform field is taken inside the room to represent the average of talkers that could be located anywhere, and facing any direction. The spot receiver locations outside are chosen close to the boundaries of the room to minimize the effect of the receiving space, to more realistically represent the locations of potential eavesdroppers, and to allow evaluation of weak points such as doors.

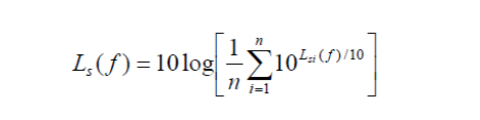

Since the level of speech varies from moment to moment, the speech levels in the room can be assessed statistically. Measurements were made of speech levels Lsp(f) in a large number of meetings, and this information has been used to determine the probability of occurrence of certain levels [5, 6]. Logging sound level meters were placed in meeting rooms, and recorded the equivalent sound level (Leq) over 10-second intervals. Analysis of these short-term levels gives information about the statistical fluctuation of speech levels in the meetings. One way to interpret these statistics is to state the percentage of time that a certain level is likely to be exceeded. For example, the median speech level (50th percentile) is exceeded 50% of the time, or one out of every two 10-second intervals (once per 20 seconds). A higher speech level, say the 90th percentile, is exceeded only 10% of the time, or one out of every ten 10-second intervals (once per 100 seconds).

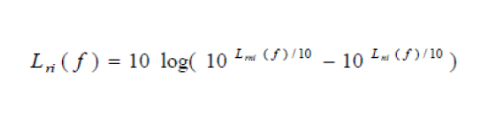

The background noise at the listener position outside of a closed room also varies during the day [5]. The level of the background noise Lb(f) can be measured for a short period of time believed to be representative of the building's normal operation, or it can be logged over a longer period of time, or can be assumed from other knowledge.

Putting it all together, the value of SNRUNI32 outside the room is given by Equation 2 below,

where Lsp(f) is the speech level inside the room, LD(f) is the measured level difference between the average inside the room and a listener position, and Ln(f) is the background noise at the listener position. Frequently the -32 dB limitation has minimal effect, so Equation 2 can be simplified and rewritten as Equation 3 below,

where (avg) indicates the arithmetic average of Lsp(f), LD(f), and Ln(f) over the 16 1/3-octave bands from 160 to 5000 Hz.

A particular speech privacy criterion such as the threshold of intelligibility corresponds to a particular value of SNRUNI32, say SNRUNI32,0. Rewriting Equation 3 as an inequality, when the following is true of the speech level, as Equation 4 below

then the conditions at the listening point are at least as private as the criterion conditions. The quantities LD(avg) and Ln(avg) are properties of the closed room, so Equation 4 dictates the maximum speech level Lsp(avg) for which the conditions are adequately private. From the statistics of speech levels, this can be interpreted as the length of time in between expected privacy "lapses", which would correspond to instances for which the speech level is larger than that allowed by Equation 4.

The privacy criterion is chosen as the threshold of intelligibility, and correspondingly the criterion value of SNRUNI32,0 is -11 dB. Then Equation 4 yields the following relationship, as shown in Equation 5 below,

This determines the maximum speech level for which conditions at the listening point remain below the threshold of intelligibility. The likelihood of this speech level being exceeded is the likelihood that the conditions at the listening point will be above the threshold of intelligibility.

As previously stated, the quantities LD(avg) and Ln(avg) are properties of the closed room (that is, of the building). The sum of these two terms governs the speech privacy rating of a room, and is called the Speech Privacy Class, SPC as per Equation 6 below,

Speech privacy requirements can be specified in terms of SPC values. Table 13 includes a range of SPC values and descriptions of the speech privacy that each would provide.

Table 12: Design tips for Speech Security

Mechanical	Minimize penetrations of acoustically rated partitions Use silencers or Z shaped transfer ducts lined with 25mm rigid neoprene or scrim coated duct linerboard to limit sound transfer through ducts Where possible place silencers or transfer ducts over doors to limit sound leakage to one location Typically, most doors have a higher degree of natural surveillance Avoid using silencers or transfer ducts near waiting areas Use caulking, preferably red fire rated for all penetrations through walls Where the use of Z shaped transfer ducts is not possible use L-shaped duct Constant Air Volume (CAV) systems provide more consistent background noise levels than Variable Air Volume (VAV) Where an acoustic partition abuts a perimeter heating convector, details need to be developed to achieve noise isolation across the convector Often requires disassembly of the convector Mockup highly recommended Acoustic details need to be developed for each type of wall penetration
Electrical	Minimize electrical, data, communications wiring, and outlets in speech secure partitions Collect electrical services together and enclose in a services plenum, built so as to be acoustically separate from the acoustic partition Back-to-back electrical outlets cannot be in the same stud cavity; separate outlets on opposite sides of partitions for power, data and communications by at least one stud, minimum 300mm separation Walls including electrical boxes on both sides require to have stud cavities filled with porous sound absorbing material Ensure proper insulation and caulking is used around all penetrations Provide conduit for anticipated future wiring needs, to limit damage to acoustic insulation
Architectural	Use spatial separation wherever possible to distance noise sensitive locations from potential eavesdroppers Minimize use of high acoustical performance components Investigate flanking transmission through exterior walls (especially heritage buildings), and through exterior window frames between offices Ensure that design drawings and specifications fully address all construction details for proper speech security (See the attached sketches) Avoid glazing in partitions of speech secure space Use sill seal or other treatment to seal framing to adjacent surfaces Provide insulation clips or other structural support every 24 inches vertically for insulation, which has a thickness less than the size of the studs Do not allow gaps over 10mm between the gypsum board and any other elements such as the structural slab or mechanical system In addition to caulking use a backer rod for gaps between 10mm and 6mm Use caulking, preferably red fire rated, for all joints between drywall and other elements for gaps only up to 10mm Increases in the gauge of steel studs can dramatically decrease the acoustic properties of the wall The addition of steel mesh or sheet steel may decrease the acoustic properties of the wall
Doors and Door Hardware	When a single door is required to provide acoustic isolation, use an acoustically rated door Multiple (non-rated) doors that are fully weather-stripped including drop bottoms typically in the form of an acoustically treated vestibule can be most effective Avoid double doors wherever possible Always use vestibules if double doors are required Ensure adequate latch set operator setback/offset (particularly for knob type hardware) to avoid hitting your hand on the jamb seals/gaskets when opening the door When specifying a door with a drop threshold ensure a flat metal threshold or sill is provided since this device cannot seal properly against carpet or uneven floor Ensure all seals/gaskets are adjustable and that they are adjusted properly after installation to match minor warps in the door, frame or floor
General	Maintain and update an "Acoustic SSDL" during construction Ensure any Change Orders do not decrease the acoustic isolation

Table 13: Privacy and security protection provided by some SPC values

Name	SPC	Description
Minimal speech privacy	70	A few words will be intelligible at most once each 3 minutes, and speech sounds will frequently be audible (at most once each 0.6 minutes)
Standard speech privacy	75	Speech sounds will be occasionally intelligible (at most once each 18 minutes) and frequently audible (at most once each 2 minutes) Protected B
Standard speech security	80	Speech sounds will very rarely be intelligible (intelligible at most once each 2.3 hours) and occasionally audible (at most once each 12.5 minutes) Protected C - Secret
High speech security	85	Speech essentially unintelligible (at most once each 15 hours) and very rarely audible (at most once each 1.5 hours) Top Secret
Very high speech security	90	Speech not intelligible and very rarely audible (at most once each 11 hours)

Measurement Procedures

To evaluate the privacy provided by an existing closed room, measurements need to be made of the sound insulation to the listening point (LD), and of the background noise at the listening point (Ln), so that the SPC may be determined.

Calculations

All calculations shall be made using unrounded, measured values.

Source room levels

a) If source room measurements were made using fixed microphone positions, determine Lsi(f), the average sound pressure level in each band, for source position i, as follows in Equation # 7 below:

where m is the number of microphone positions.

b) Calculate Ls(f), the mean source sound pressure level in the closed room in each frequency band, using Equation # 8 below,

where n is the number of source positions.

c) Calculate Ls(avg), the arithmetic average of source room level over the 16 1/3-octave frequency bands from 160 to 5000 Hz from using Equation # 9 below,

Received levels at each receiving point

a) For each source position i, the received level in each frequency band f at each receiving point shall be corrected for background noise as follows:

• If the difference Lrni(f) - Lni(f) is more than 10 dB then no corrections for background noise are necessary and Lri(f) = Lrni(f).
• If the difference Lrni(f) - Lni(f) is between 5 and 10 dB, the adjusted value of the received level, Lri(f), shall be calculated as follows in Equation # 10:

•
• If the difference Lrni(f) - Lni(f) is less than 5 dB, then set Lri(f) = Lrni(f) - 2. In this case, the measurements provide only an estimate of the upper limit of the received level. Identify such measurements in the test report.

b) Calculate Lr(f), the average received sound pressure level in each band for each receiving point using in Equation # 11,

where n is the number of source positions.

If any of the Lri(f) values are limited by background noise, then the corresponding Lr(f) provides only an estimate of the upper limit of the average received level. Identify such measurements in the test report.

c) For each receiving point, calculate Lr(avg), the arithmetic average of received level over the 16 1/3-octave frequency bands from 160 to 5000 Hz from using Equation # 12 below,

Background noise levels at each receiving point

a) Calculate Ln(f), the average background noise level in each band for each receiving point using Equation # 13 below,

where n is the number of source positions.

b) For each receiving point, calculate Ln(avg), the arithmetic average of background noise level over the 16 1/3-octave frequency bands from 160 to 5000 Hz from using Equation # 14 below,

Level Differences

a) For each receiving point, calculate the difference in average source room level and average received level in each band using Equation # 15 below,

b) For each receiving point, calculate LD(avg), the average level difference over the 16 1/3- octave frequency bands from 160 to 5000 Hz from using Equation # 16 below,

Speech Privacy Class

a) For each receiving point, calculate SPC from the arithmetic sum of LD(avg) and Ln(avg) using Equation # 17 below,

b) The background noise outside the closed room may vary from time to time, so the measured value Ln is representative of that during the measurement period only. For the purposes of estimating SPC for different noise conditions, the background noise may additionally be measured at different times, or assumed from other knowledge.

Precision

a) The uncertainty in the final measured value SPC depends on the precision of the measurements of: source room average levels, received levels, and background noise levels. Precision of the measurements of the average source and received levels varies with frequency and room properties, the number of source positions, type of loudspeakers used, and the number of microphone positions.

b) The 95% confidence interval for SPC can be calculated according to Section 1. This is not mandatory. Users of this method can decide what an acceptable 95% confidence interval is, and if the initial number of source positions does not give an acceptable value, then more source positions shall be used.

c) Using the minimum specified number of source and fixed microphone positions (i.e., 2 source positions, 5 microphone positions) in a wide range of rooms, the average 95% confidence interval for Ls(avg) has been found to be ±1.1 dB using omni-directional sources, and ±1.6 dB using directional sources [4]. Uncertainty in the final value of SPC will be no smaller than this. Rooms that are smaller than 60 m3 or larger than 200 m3 with a reverberation time less than 0.6 s will likely have larger uncertainties.

Report

Report the following information:

• Statement of Conformance to Method—If it is true in every respect, state that the tests were conducted in accordance with the provisions of this Guide;
• Description of Test Environment— Give a general description of the closed room and furnishings. Give a sketch showing the relationship of the receiving points to the closed room. State the volume of the closed room;
• Description of Measurement Method—Identify the type of loudspeaker used and the microphone method used to measure the levels in the closed room. Indicate the source positions used on the room sketch;
• Statement of Precision—If the confidence interval for SPC was calculated, report it; otherwise state that the uncertainty of the result was not determined;
• Provide a table giving the values of Ls(f), and for each receiving point of Lr(f), LD(f) and Ln(f) at the specified frequencies, rounded to the nearest 1 dB. Identify those values of Lr(f) and LD(f) that were contaminated by background noise; and
• Provide a table giving the values of Ls(avg), and for each receiving point Lr(avg), LD(avg), Ln(avg), and SPC. Identify those values of Lr(avg), LD(avg), and SPC that were contaminated by background noise.

Design Procedures

At the design stage, it is necessary to specify an assembly that will, after construction, provide the desired degree of speech privacy. Usually the only information available at this stage is transmission loss (TL) data of individual specimens, measured in the laboratory according to ASTM Test Method E 90.

Research has shown that the transmission loss data can be used to estimate the level difference between a uniform sound field on one side of a partition, and the received level at 0.25 m from the other side of the partition [3]. Therefore, SPC can be estimated at the design stage. Designers should be aware that the performance of partitions in buildings is almost always degraded by flanking transmission (that is, sound transmission via paths other than directly through the nominally separating partition), and that laboratory performance is usually not realized in the field.

Measurements for a range of walls and with a wide range of acoustical absorption in the rooms on either side of the walls have demonstrated that for a uniform field incident on one side of a wall, the received level at 0.25 m on the other side can be estimated from Equation # 18 below,

where, L0.25(avg) is the received level at 0.25 m from the wall, Ls(avg) is the level of the uniform field on the source side of the wall, TL(avg) is the transmission loss of the wall, and (avg) means the arithmetic average over all 16 bands from 160 to 5000 Hz. Equation # 18 is correct within ± 0.5 dB for most rooms with reverberation times less than about 1.2 s, and can be rewritten to predict the required level difference as follows in Equation # 19 below,

where LD(avg) = Ls(avg) - L0.25(avg).

Equation #19 can be used to predict the SPC from transmission loss data follows using Equation #20 below,

Which allows designers to estimate the degree of speech privacy from published laboratory TL data, and an assumption or knowledge of the background noise Ln(avg) in the listening space. The descriptions in Table 13 can be used to set criteria for SPC.

At the design stage it is difficult to accurately estimate background noise levels at each potential listener position. In addition, background noise levels typically vary over time and require measurements over long time periods to accurately characterize conditions. As a result, it is often necessary to estimate realistic lowest likely background noise levels for designs. These values were obtained from measurements of the statistical variations of background noise levels near government meeting rooms. During the daytime (8:00 to 17:00) background noise levels were only less than 35 dBA about 1% of the time. Therefore, for the daytime period, 35 dBA or Ln(avg) = 24 dB* would be a safe lowest likely background noise level to use in a worst case design calculation in the absence of measured background noise level values. When rooms are used outside of daytime hours, one can similarly use, 30 dBA or Ln(avg) = 19 dB for a suitable lowest likely ambient level for evenings (17:00 to 24:00) and 25 dBA or Ln(avg) = 14 dB for night time hours (24:00 to 6:00).

(*The conversion from dBA to dB(avg) assumes a typical -5 dB/octave spectrum shape for background noise levels).

Closed Room Levels

If the fixed microphone method was used, calculate the 95% confidence interval for the source room average according to the following.

a) For each measurement of source room levels at microphone position j for source position i, calculate the average over frequency Lsij(avg) as per equation #21,

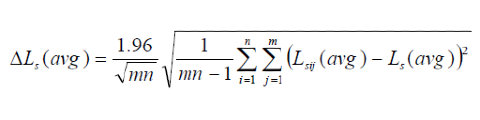

b) Calculate the 95% confidence interval for Ls(avg) according to equation #22,

If the integrating microphone method was used, determine an approximate estimate of the 95% confidence interval for the source room average according to the following.

a) For each measurement of source room level for source position i, calculate the average over frequency Lsi(avg) equation #23,

b) Estimate the 95% confidence interval for Ls(avg) according to equation #24,

This is equivalent to assuming a large number of receiver positions were used.

Received Levels

For each receiving point, calculate the frequency averaged received level Lri(avg) for source position i according to equation #25,

Calculate the 95% confidence interval for Lr(avg) according to equation #26,

Level Differences

For each receiving point, calculate the 95% confidence interval for LD(avg) using equation #27,

Background Noise Levels

For each receiving point, calculate the frequency averaged background level Lni(avg) for source position i according to equation #28,

Calculate the 95% confidence interval for Ln(avg) according to equation #29

SPC

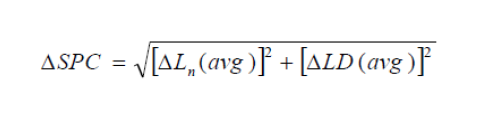

For each receiving point, calculate the 95% confidence interval for SPC using equation #30
