Communique on physical security 2024-002
RCMP approved combination locks operation aide-mémoire

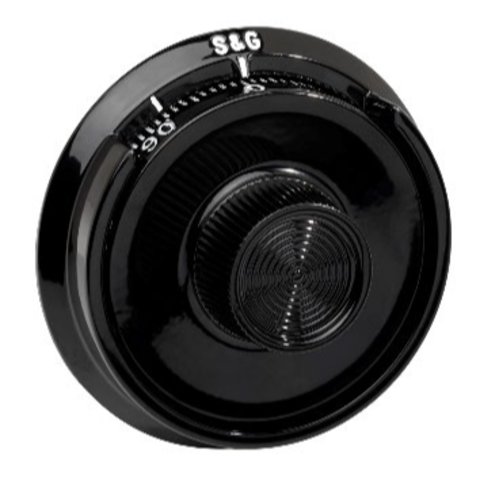

S&G 8500 Series Safe Dials

Note: Prior to step 1, it is recommended to spin the dial 4-5 times to clear the mechanism

If the combination is 87-24-59, you would:

Spin the dial to the left (counter clockwise) passing 87 three times and stop on 87 on the 4th turn.
Spin the dial to the right (clockwise) passing 24 two times and stop on 24 on the 3rd turn.
Spin the dial to the left (counter clockwise) passing 56 one time and stop on 56 on the 2nd turn.
Spin the dial to the right (clockwise) stop on 0 (do not pass it). Push in on the dial and let it spring back out. Spin the dial right (clockwise) until the dial locks (usually around 85).
Pull on the drawer/handle to open the drawer/door.

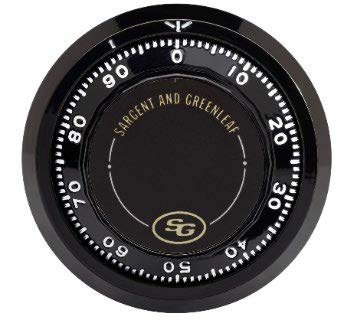

Note: Prior to step 1, it is recommended to spin the dial 4-5 times to clear the mechanism

If the combination is 87-24-59, you would:

Spin the dial to the left (counter clockwise) passing 87 three times and stop on 87 on the 4th turn.
Spin the dial to the right (clockwise) passing 24 two times then stop on 24 on the 3rd turn.
Spin the dial to the left (counter clockwise) passing 59 one time then stop on 59 on the 2nd turn.
Spin the dial to the right (clockwise) stop on 0 (do not pass it). Hold the dial at 0 with one hand and turn the centre lever on the dial to the right with the other hand. Spin the dial right (clockwise) until the dial locks (usually around 85).
Pull on the drawer/handle to open the drawer/door.

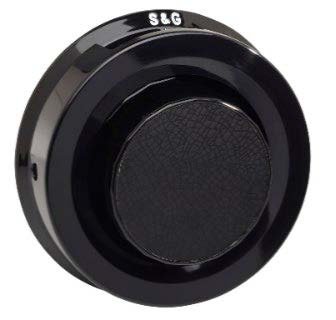

Note: Prior to step 1, it is recommended to spin the dial 4-5 times to clear the mechanism

If the combination is 87-24-59, you would:

Spin the dial to the left (counter clockwise) passing 87 three times and stop on 87 on the 4th turn.
Spin the dial to the right (clockwise) passing 24 two times then stop on 24 on the 3rd turn.
Spin the dial to the left (counter clockwise) passing 59 one time then stop on 59 on the 2nd turn.
Spin the dial to the right (clockwise) until the dial stops.
Pull on the drawer/handle to open the drawer/door.

Note: Prior to step 1, it is recommended to spin the dial 4-5 times to clear the mechanism

If the combination is 87-24-59, you would:

Spin the dial to the left (counter clockwise) passing 87 three times and stop on 87 on the 4th turn.
Spin the dial to the right (clockwise) passing 24 two times then stop on 24 on the 3rd turn.
Spin the dial to the left (counter clockwise) passing 59 one time then stop on 59 on the 2nd turn.
Spin the dial to the right (clockwise) stop on 0 (do not pass it). Push in on the dial and let it spring back out. Spin the dial right (clockwise) until the dial locks (usually around 85).
Pull on the drawer/handle to open the drawer/door.

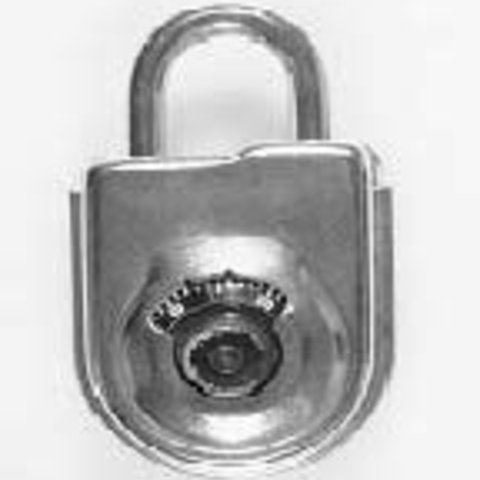

Note: Prior to step 1, it is recommended to spin the dial 4-5 times to clear the mechanism

If the combination is 87-24-59, you would:

Spin the dial to the left (counter clockwise) passing 87 three times and stop on 87 on the 4th turn.
Spin the dial to the right (clockwise) passing 24 two times then stop on 24 on the 3rd turn.
Spin the dial to the left (counter clockwise) passing 59 one time then stop on 59 on the 2nd turn.
Spin the dial to the right (clockwise) stop on 0 (do not pass it).
Pull down on the body of the lock to release the shackle.

Contact the RCMP LSA with your Physical Security inquiries at RCMP LSA Org Email: rcmp.lsa-grc.posm@rcmp-grc.gc.ca or visit the RCMP LSA web page.
